2 Pack RJ11 Telephone & Gigabit Ethernet Fiber Optic Converter - FXS/FXO VoIP Extender Kit - Supports Single/Multimode Fiber up to 20km (12.4mi) - Perfect for Office VoIP Systems, Remote Workstations & Long-Distance Network Extensions

4 port FXS/FXO POTS+ 1 x Gigabit Ethernet over Fiber 2 port FXS/FXO POTS+ 1 x Gigabit Ethernet over Fiber 2 port FXS/FXO POTS+ 1 x Fast Ethernet over Fiber 4 x FXS/FXO over Ethernet / Fiber / RJ-45 - 3 in 1 ! Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 5.0 out of 5 stars 3 5.0 out of 5 stars 4 5.0 out of 5 stars 1 4.5 out of 5 stars 4 Price $349.00$349.00 $290.00$290.00 — no data $495.00$495.00 FXS/FXO ports 4 2 2 4 Fiber Type Single Mode & Multimode Universal Single Mode & Multimode Universal Single Mode & Multimode Universal depends on SFP module Maximum Reach 1 km MM (0.6 mi) 20km SM (11.4 mi) 1 km MM (0.6 mi) 20km SM (11.4 mi) 1 km MM (0.6 mi) 20km SM (11.4 mi) depends on SFP module Ethernet Port 1 x Gigabit 1 x Gigabit 1 x Fast Ethernet 2 x (used for Uplink Transmission) Fax Support ✓ ✓ no data ✓ Fiber Connector SC Duplex (2 fibers) SC Duplex (2 fibers) SC Simplex (1 fiber) depends on SFP module Dimensions 10.5x13x3in 10.5x13x3in 17.3x17.3x3in 8.5x5.5x1.2in Ethernet as Uplink Port not supported not supported not supported ✓ Uplink Media Fiber Only Fiber Only Fiber Only Ethernet or Fiber or RJ-45 (3in1) AD-net’s AN-FM-PCM02/GETH-M Fiber Optic Multiplexers offer a low-cost solution for extending limited reach POTS RJ-11 copper telephone lines to fiber optical distances of over 11.4 miles using Single Mode - SM type optical fibers and 0.62 miles using Multimode (Multi Mode - MM) fibers. Besides extending 2 telephone lines over the same fiber, these multiplexers also carry 1 Gigabit Autosensing Ethernet RJ-45 network port, which offers even more effective re-use of fiber cables. Even more importantly, – besides the extension, which more often than not, happens outdoors, AD-net’s Phone over Fiber extenders solves the problem of lighting protection for your home. Lengthy copper cables, installed outdoors, are prone to attracting lightning, and this can damage electrical equipment in your homes. Technical Specifications Telephone/Fax Port Connector RJ11 Voice Bandwidth 8KHZ Codec method PCM codec Signaling Transparent support any in-band signaling, including calling number detection Connection type PABX (FXO) side to Phone (FXS) side FXS (Phone side) Ringing voltage: 75V, ringing frequency: 25HZ FXO (CO PBX side) Two-wire input impedance: 600Ω (off-hook) Return loss 40 db, ringing detection voltage: 35V Ring detection frequency 17HZ-60HZ Return loss 40 db Optical wavelength 1310nm Fiber Type Supported: multimode mode (MM) or single mode (SM) Transmission range 1km for MM or 20km for SM Optical interface SC duplex UPC/PC (blue) (2 fibers needed) Ethernet interface datarate 10/100/1000Mbps - Gigabit Ethernet Connector RJ45 General Specifications Input Power AC 90 - 260 AC, US type Power Plug (AC adapter comes in set) Power Consumption <5W Working temperature -10°C ~ 60°C Storage temperature -35°C~+70°C Relative humidity 95 %

Protect Your Home Bulletproof Phone to Fiber fiber cable extender for long, prone to lightning, lengthy outdoor copper cables + Gigabit Ethernet connection will over SAME fiber along with 2 phones!

Universal for Both Fiber Types Same media converter (extender) supports Multimode fiber for a distance up to 1 km (0.62 miles) and Single mode fiber for a distance up to 20 km (11.42 miles), wavelength 1300/1310 nm

Extend your Phones (even Fax Supported!) & Network 2 Independent FXS / FXO Telephone or Fax lines + 1 GIGABIT (!) Ethernet (10/100/1000 Mbit/s) Autosensing port over same Multimode or Single mode fiber cable

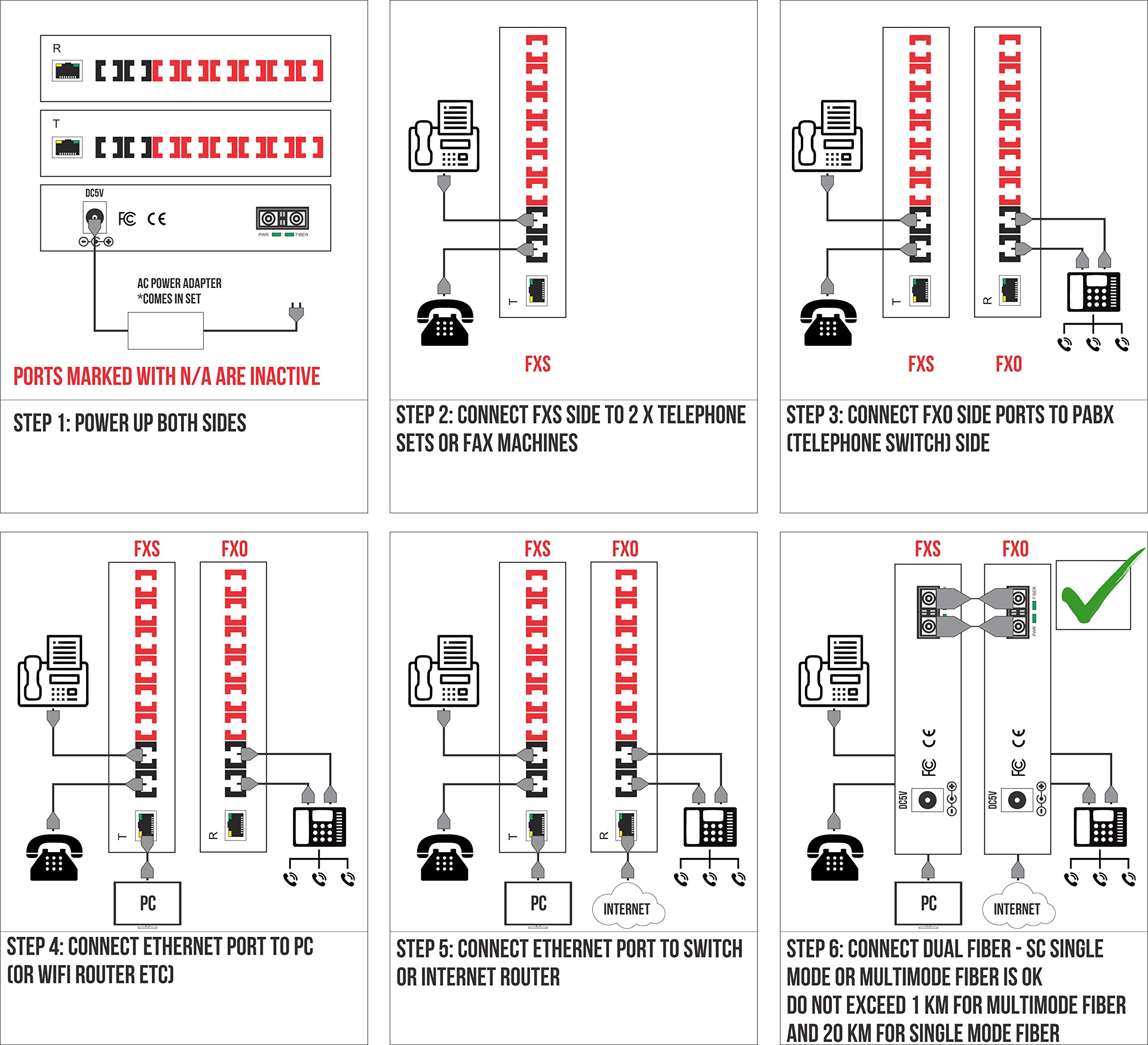

Plug & Play and Simple to Install No setup or configuration needed, SC connector for fiber optical port, RJ-11 connector for telephone ports & RJ-45 for Gigabit Ethernet 10/100/1000Mbit/s

No Delay Transmission & Protocol Support Unlike VoIP products - these converters transmit signals directly over fiber cables, thus offering NO DELAYS, plus support for FAX & Legacy applications that is not supported by VoIP lines
