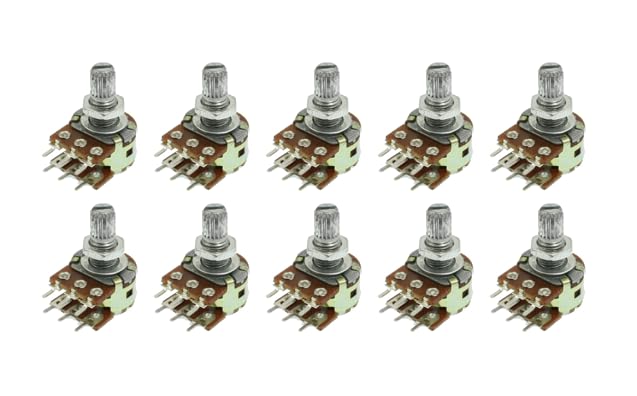

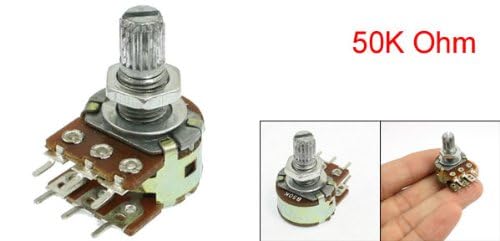

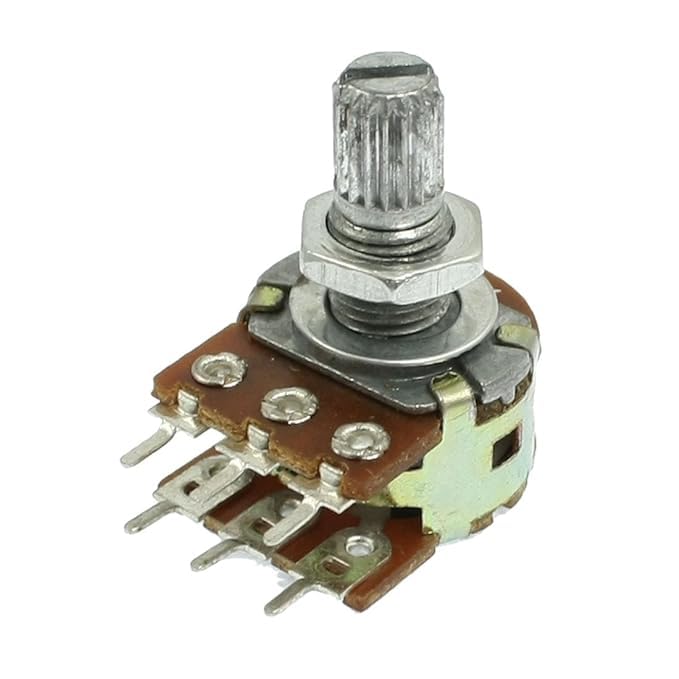

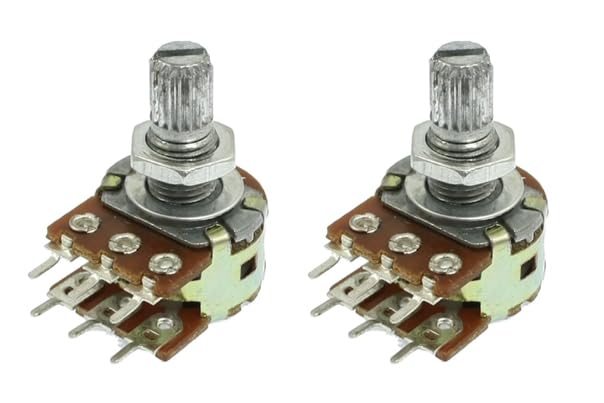

SP B50K Ohm Dual Linear Taper 6-Pin Rotary Potentiometer - 10 Pack for Audio Equipment, Guitar Pedals & DIY Electronics Projects

Features: 50K ohm, 6 Terminals, Dual Linear (Type B), suits most standard knobs. Top adjustment type and knutled shaft for easy operate in daily use time. Mainly used to control electronic musical instrument, loudspeaker, CD/DVD player, etc

Potentiometer;Resistance Value 50K Ohm;Type Dual Linear (Type B);Features Knurled Shaft

Shaft Diameter 6mm / 0.23";Shaft Length 8mm / 0.31";Mounting Thread Dia 7mm / 0.27

Base Height 10mm / 0.39";Base Diameter 17mm / 0.66";Pin Size 4 x 1mm/ 0.15" x 0.03"(L*W)

Pin Spacing 5mm/ 0.196";Overall Size 25 x 10 x 26mm/ 0.98" x 0.39" x 1.0"(L*W*H);Material Metal, Electronic Parts

Color As Picture Show;Weight 8g;Package 1 x Potentiometers
