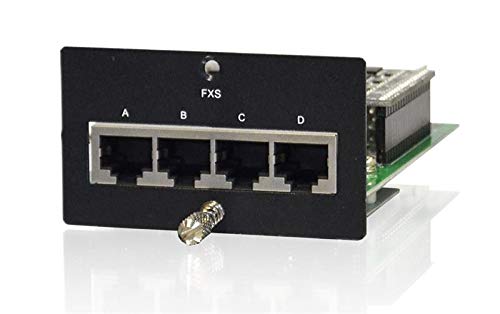

FMUX1001-FXS 4 Port FXS Module with RJ11 Connectors - VoIP Telephone Adapter for Home & Office Communication Systems

The FMUX1001-FXS is a 4 port POTS FXS type telephone line module, hot swappable, for the FMUX1001 fiber multiplexer. The FXS module is designed to connect directly to terminal telephone devices like phone handsets, dialers or fax machines. There are a total of 4 slots for data modules on the main FMUX1001 chassis. Other modules available for the FMUX1001 support T1, E1, RS232, RS530, X.21, V.35 and FXS type POTS interfaces. The FMUX1001 chassis has built-in redundant Gigabit speed SFP optics and has SNMP and full speed Gigabit Ethernet network connections offered besides the total 16 channels available.

4 telephone line FXS type ports module for FMUX1001 optical multiplexer

FXS module can be matched with either another FXS module for hot line (ring down) service or an FXO module for regular telephone line extension on the same data slot for the remote FMUX1001 unit

each telephone line is matched port for port, totally transparent
